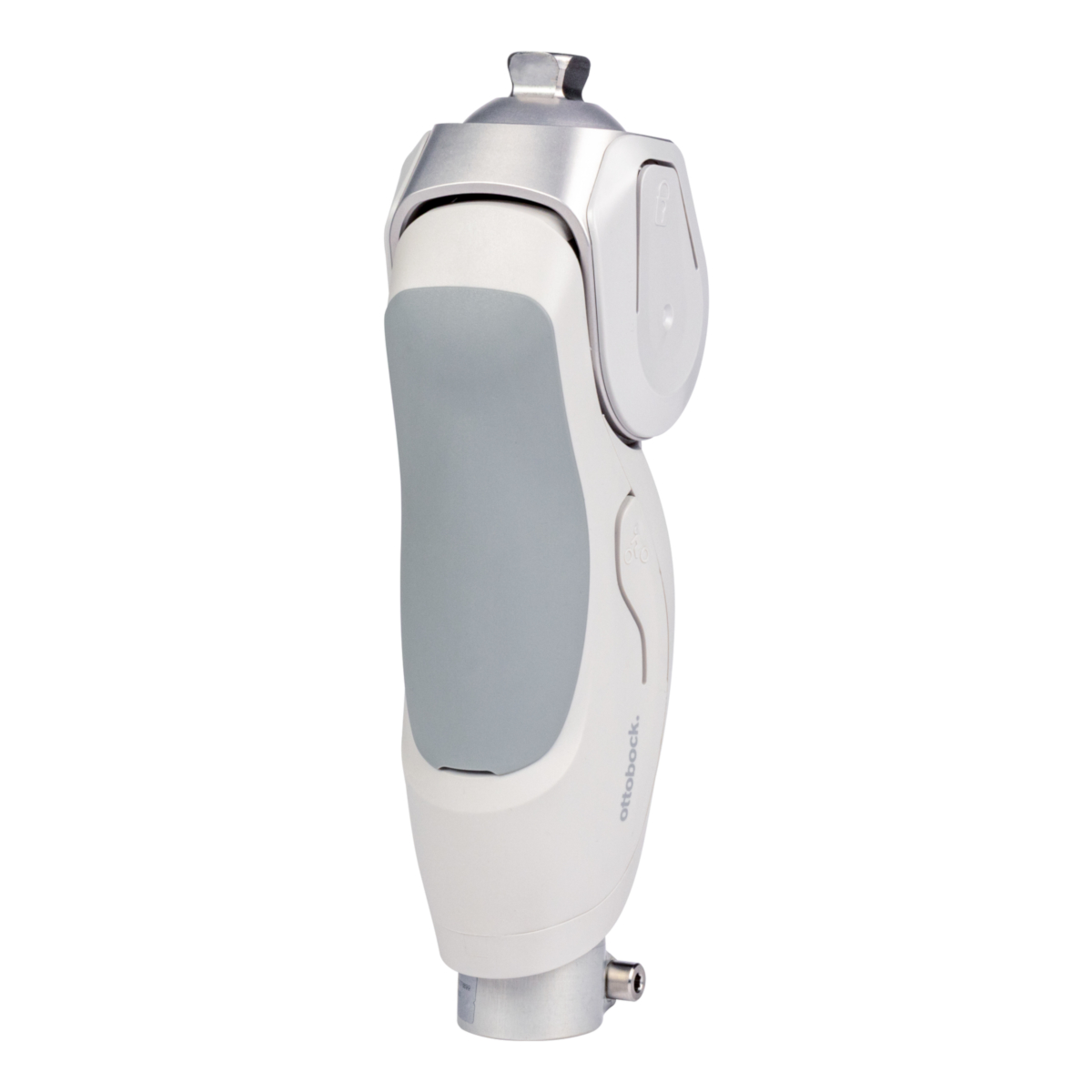

3R84 Prosthetics
Rotary Hydraulic knee for lighter weight users
Rotary Hydraulic knee for lighter weight users
Overview
dynion explore was developed for active adolescents and adults with a low body weight who want to live life to the fullest on their own terms.
Designed for optimal outcomes
- The powerful rotation hydraulics with stance and swing phase control ensure dynamic, dependable gait control
- The adjustable stance phase flexion resistance provides support when walking on stairs, ramps and slopes
- The manual lock makes relaxed standing possible
- An extra mode for cycling
- Modern, slim and robust design
- Multiple color options for a unique look
- Waterproof for more freedom in everyday life
Ordering options
Ordering with the grey cover cap
3R84=P

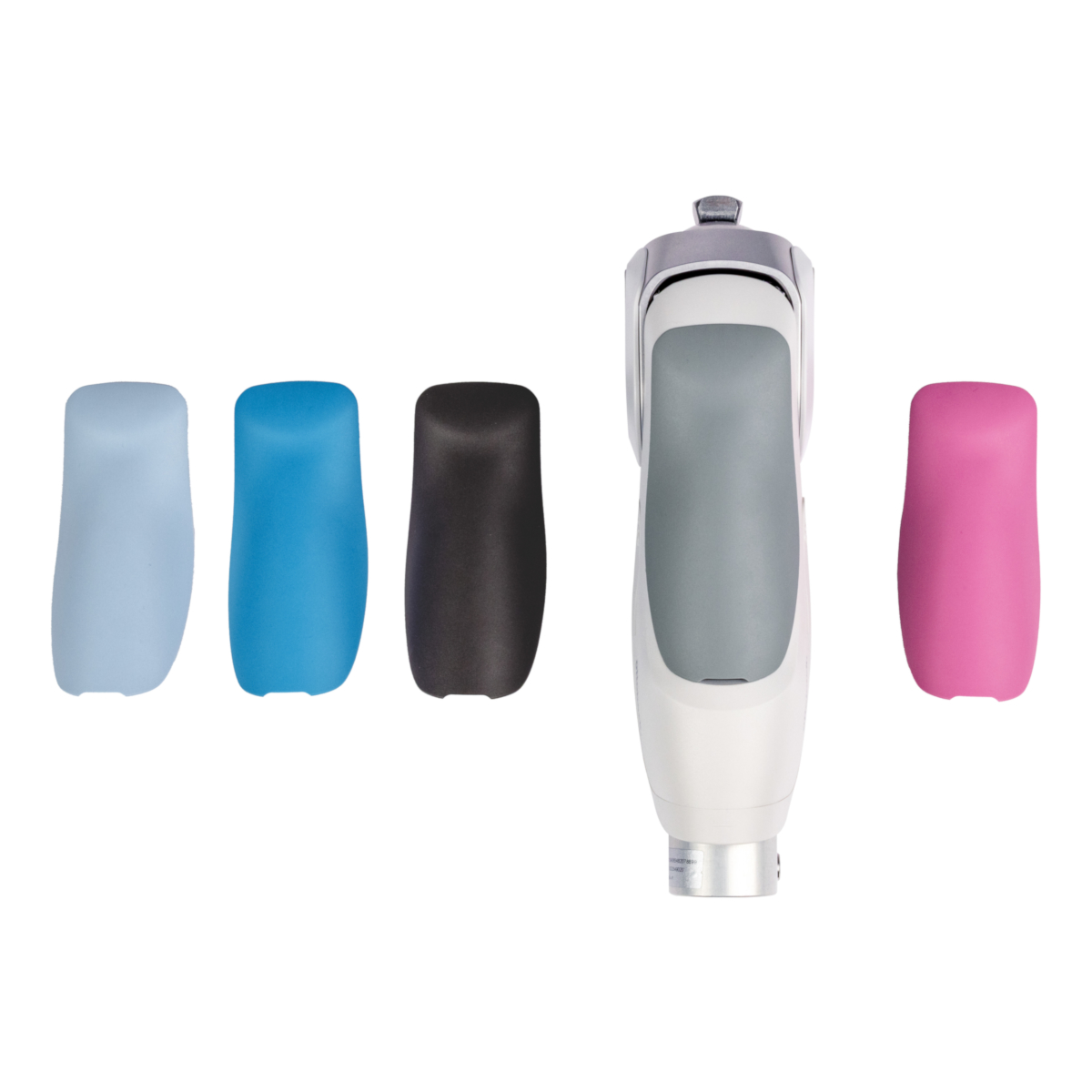

Ordering with an additional colored cover cap
3R84=P/1.5 - dark grey
3R84=P/5.9 - light blue
3R84=P/5.12 - azure blue
3R84=P/12 - pink
View the Dynion training tutorial videos here.
| Mobility grade | 3 - 4 |
|---|---|
| Max. body weight | 132 lbs (60 kg) |
| Product weight | 2.7 lbs (1.2 kg) |
| Proximal connection | Pyramid |
| Distal connection | Tube clamp, 30 mm diameter |
| Build height | 8 1/2" (216 mm) |
| Proximal build height to alignment reference point | 1 3/4" (44 mm) |
| Distal build height to alignment reference point | 6 3/4" (172 mm) |
| Max. knee flexion angle | 145 degrees |
| Included in scope of delivery | 30 mm Titanium Tube adapter |
